Mastering the metallurgical parameters of tig welding stainless steel alloys represents a core manufacturing capability for high-specification fabrication enterprises. Across demanding industrial sectors—including European pharmaceutical process piping plants, Middle Eastern LNG cryogenic storage yards, and Southeast Asian semiconductor cleanroom facilities—joining austenitic (304L, 316L) and duplex (2205) stainless steels requires zero-tolerance precision. The material combines high electrical resistance and low thermal conductivity with a severe susceptibility to chromium carbide precipitation and thermal panel buckling.

For plant operations directors, chief welding quality engineers, and corporate procurement committees, establishing certified Welding Procedure Specifications (WPS) for tig welding stainless steel pipe and high-alloy exhaust systems demands moving past basic manual techniques. Achieving zero-porosity radiographic X-ray passing rates, maintaining critical ferrite numbers, and preventing intergranular corrosion under ASME Section IX and AWS D18.1 codes requires a data-driven engineering evaluation of digital pulse parameter modulation, back-purging oxygen thresholds, and shielding gas fluid dynamics.

This chemical reaction depletes the adjacent grain boundaries of free chromium below the 10.5% threshold required to form a protective chromium oxide (Cr2O3) passive film. When deployed in corrosive chemical or marine environments, these sensitized grain boundaries suffer catastrophic intergranular attack, causing catastrophic joint cracking and pressure containment failure.

To prevent sensitization during industrial production runs, plant welding supervisors mandate three baseline metallurgical controls:

1. Low-Carbon Base & Filler Metals: Standardizing on "L-grade" alloys (such as 304L and 316L with carbon content strictly below 0.03%) or stabilized grades alloyed with titanium or niobium (such as 321 or 347).

2. Strict Heat Input Restrictions: Enforcing strict linear heat input ceilings (typically below 1.2 kJ/mm on thin-wall piping and sanitary tubing).

3. Controlled Interpass Cooling: Utilizing digital contact pyrometers to ensure the interpass temperature drops below 150°C (300°F) before initiating subsequent weld passes.

To evaluate how core power supply architectures and isolated wind-tunnel chassis designs maintain microsecond thermal output stability during continuous multi-shift production, read our authoritative analysis on TIG Welder Manufacturer Heavy Industrial Systems.

High-output GWELD industrial digital inverter power sources integrate advanced high-speed pulsing capabilities capable of modulating output current up to 500 Hz. Calibrating pulse dynamics delivers decisive engineering advantages:

1. High-Frequency Arc Constriction (100 Hz to 500 Hz)

Increasing the pulse frequency constricts the electromagnetic boundary of the plasma arc. The narrowed arc focuses thermal energy directly into the joint root, allowing operators to increase travel speeds by up to 40% while reducing total linear heat input.

2. Microsecond Puddle Freezing

Setting an asymmetric pulse balance (e.g., 30% Peak Amperage at 180A, 70% Background Amperage at 35A) allows the molten weld puddle to solidify instantaneously during the background cycle. This eliminates sagging and burn-through when executing out-of-position 5G/6G pipe spool welds or thin-wall tig welding stainless exhaust manifolds.

Heat Input Equation (Industrial Standard Metric)

Heat Input (kJ/mm) = [Voltage (V) * Current (A) * 60] / [Travel Speed (mm/min) * 1000] * Thermal Efficiency (0.6 for TIG)

To analyze complete fleet optimization guidelines and facility equipment layout architectures, consult our comprehensive guide on TIG Welder Fleet Optimization and Plant TCO.

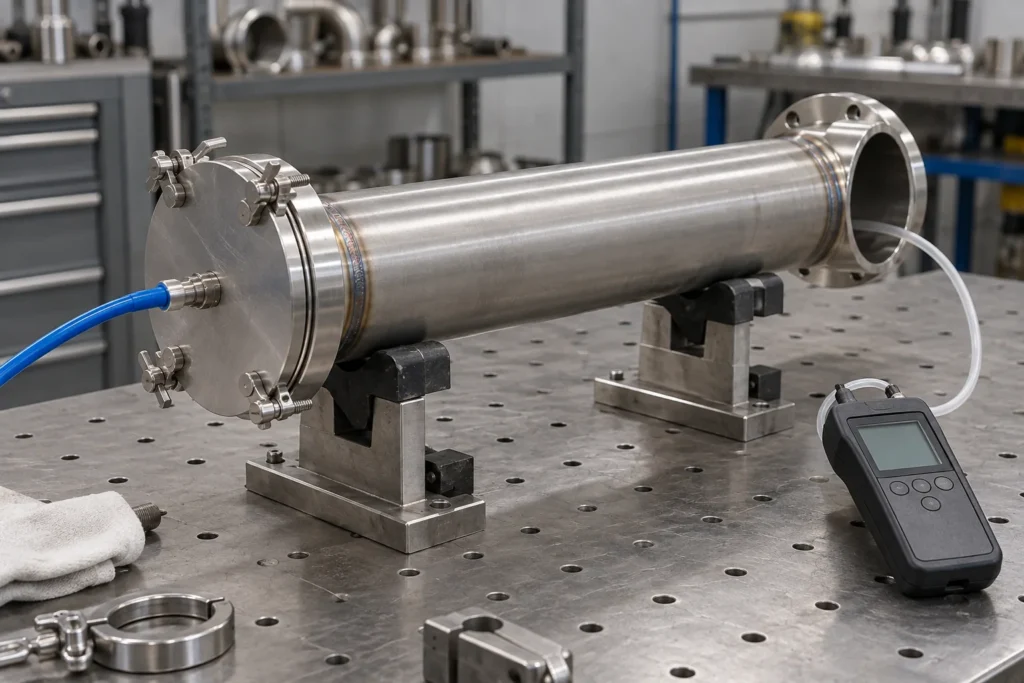

To guarantee compliance with ASME B31.3 (Process Piping) and AWS D18.1 (Sanitary Tube Welding Standards), engineering crews implement standardized purging protocols:

1. Inflatable Purge Dam Deployment: Deploying silicone or water-soluble purge dams on both sides of the pipe joint to minimize the volume of the purge chamber, reducing expensive argon consumption.

2. Digital Oxygen Sensing: Utilizing electrochemical zirconium oxide oxygen analyzers to continuously monitor purge chamber exhaust. Arc ignition is strictly locked until residual oxygen levels drop below 20 parts per million (ppm).

3. Controlled Purge Gas Flow: Purge flow rates must be calibrated between 5 to 10 CFH (2.5 to 5 L/min). Excessive purge flow creates positive internal pipe pressure, blowing the molten root puddle outward and causing concavity defects.

To master gas lens selection, flow rate calibration metrics, and laminar shielding dynamics, review our technical manual on TIG Welding Gas: Industrial Flow & Gas Lens Guide.

To assist plant welding supervisors and quality auditors in establishing standardized shop-floor WPS guidelines, the following reference chart details verified parameters across common stainless steel pipe and plate configurations:

Comprehensive Stainless Steel TIG Parameter Calibration Reference Grid

To assist plant engineering departments and corporate procurement committees in completing their equipment selection matrix, the following performance chart details the operational variations between legacy manual standard TIG, high-frequency pulsed digital TIG, and mechanized cold-wire orbital TIG systems:

Comprehensive Stainless Steel Systems Performance Grid

An excellent validation of high-frequency pulse standardization occurred during the construction of a pharmaceutical liquid fractionation facility in Frankfurt, Germany. The project involved installing over 3,200 meters of thin-wall 316L stainless steel process piping (ranging from 1.5-inch to 4-inch OD) under strict ASME BPE (Bioprocessing Equipment) standards. Initial production utilizing conventional non-pulsed TIG power sources resulted in an 14.8% NDT reject rate due to internal root discoloration, angular weld distortion, and localized sensitization.

The corporate engineering committee overhauled the field fleet by deploying 22 units of GWELD heavy industrial 3-phase AC/DC digital pulse inverter platforms. The technical deployment involved three concrete modifications:

1. High-Speed 250 Hz Pulse Tuning: Output waveforms were configured to a 250 Hz pulse frequency with a 35% peak duration, constricting the plasma column and accelerating pipe joint travel speeds by 32%.

2. Automated Digital Back-Purge Interlock: Power sources were synchronized with digital oxygen analyzers, locking out the high-frequency arc trigger until root oxygen fell below 15 ppm.

3. Argon/Hydrogen Gas Blend: Torches were supplied with an Argon + 2% Hydrogen shielding gas blend exiting through jumbo gas lenses, delivering a mirror-bright, oxide-free weld bead.

Within 21 days of implementing this standardized protocol, root discoloration was completely eliminated, and the project's first-pass NDT radiographic inspection rate rose to a flawless 99.8%. Total installation cycle time was compressed by 15 days, saving over 350 engineering hours.

Optimizing an enterprise manufacturing floor for high-purity alloy joining requires an absolute commitment to thermal heat input control, verified back-purging protocols, and open supply chain transparency. Moving away from uncalibrated commercial inverters and standardizing on advanced GWELD heavy industrial digital pulse power platforms eliminates expensive joint rework, reduces chemical pickling and passivation labor overhead, and guarantees passing rates on strict international quality audits.
